| Aximum output power | 800 W | Maximum number of connections | 230 VAC: 10 sets |
| Rated output voltage | 230 V | Total harmonic distortion | <5% |
| Output Voltage Range | 190-270 V | Power factor | >0.99 |
| AC rated current | 3.47 A | Peak efficiency | 96% |
| Nominal output frequency | 50 Hz | Protection class: | Class 1 |
| Output Frequency Range | 47.5 - 53.5 Hz |
| Solar panel input power | 275-530W*2 | Maximum DC input current | 14 A x 2 |
| Max DC | 60 V | Product Size | 315*226*45mm |
| MPPT Tracking Area | 16-60 V | Product weight: | 1.56 kg |
| MPPT Tracking Accuracy | >99.5% |
| Waterproof rating: | IP67 | Ambient height | ≤2000 m: 10 Years |
| Operating ambient temperature | -40°C to +65°C | Over/Under Voltage Protection | Yes |
| View | Operating status LED | Over/Under Frequency Protection | Yes |
| Communication connection | Wi-Fi / 2.4G | Protection against island formation | Yes |
| Cooling Method | Natural cooling (no fan) | Protection against overtemperatures | Yes |
| Operating Environment | Indoor/Outdoor |
✅Pass ISO9001/14001, IEC27001,VDE certifications
✅ Registration-free up to 800W: Perfect for balcony power systems.
✅ Shade-resistant: Independent MPPT control for each module.
✅ Smart & Secure: IP67-rated housing and live monitoring via the smartlife app.
 |
 |
Micro inverter, 800W, 2 MPPT 400W, 16-60V, IP67 protection, app monitoring800W Mains Coupled Micro Inverter for Home Use with APP Monitoring, High Efficiency, Intelligent Protection, IP67 Waterproof Protection. 10 years warranty. Designed for 20 years of use.
 |
 |
|

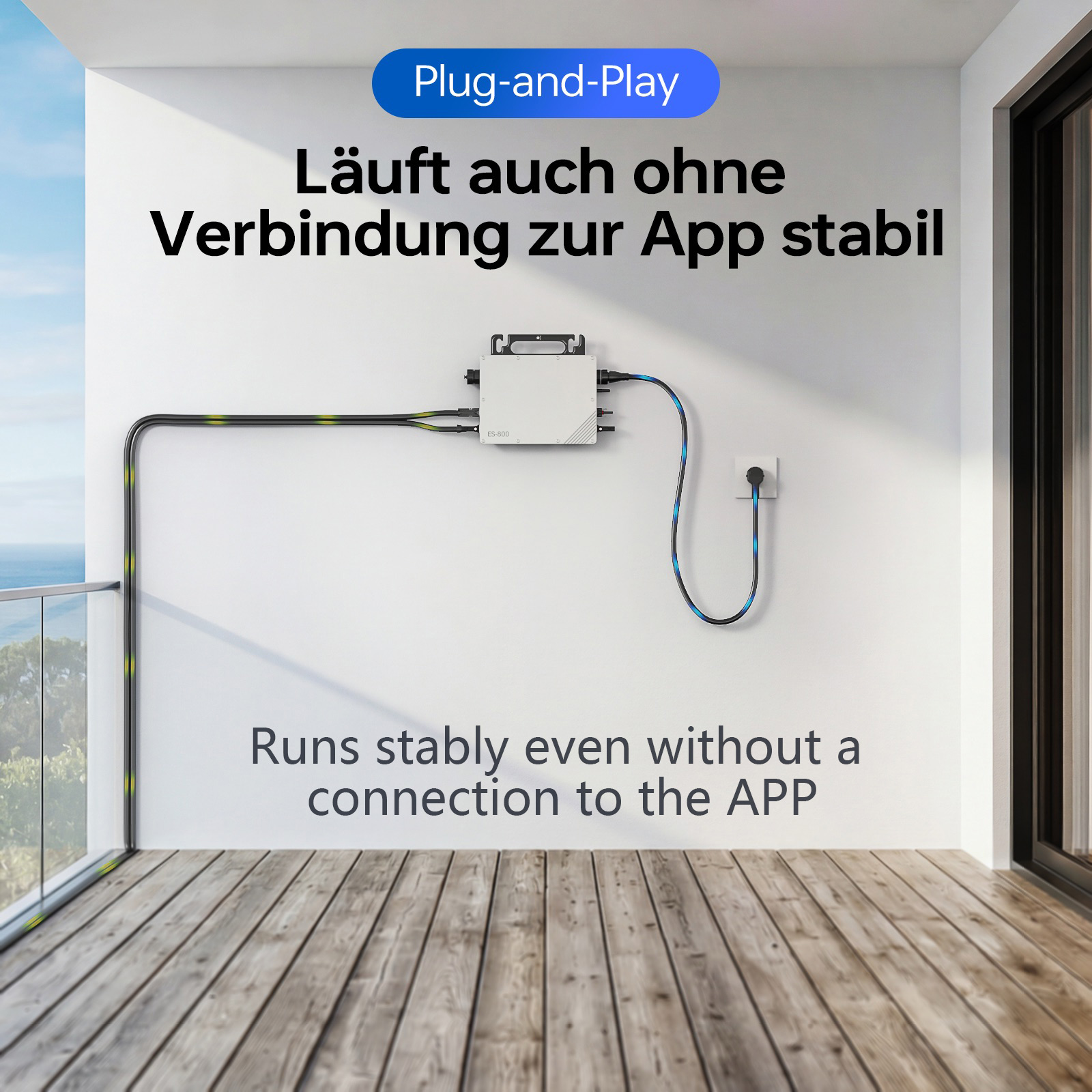

Plug and play
Flexible, quick and easy installation AC output: 230 V MC4- negative connector MC4+ positive connector |
App real-time monitoring |
At the heart of this system is the advanced inverter with MPPT, a cutting-edge technology that actively adjusts power output to match varying sunlight conditions. This ensures your solar pv inverter price delivers incredible value for money, giving you the highest return on investment for every dollar spent.
Designed to meet the unique challenges of solar inverter for home use and outdoor applications, this unit supports both grid tie solar system configurations and hybrid solar power systems. Whether you’re charging your appliances at home or fueling your next road trip, the solar power inverter for house makes every kilowatt count.
This innovative product is perfect for:
When it comes to powering your home or outdoor adventures, this solar power inverter for home checks all the boxes. It’s not just about energy efficiency—it’s about transforming your lifestyle. Designed with the latest in renewable energy technology, this grid tie power inverter empowers you to take charge of your electricity needs while reducing dependency on traditional energy sources.
From the flexibility of hybrid solar systems to the reliability of grid tie solar inverter setups, this product offers unparalleled performance. With affordability that rivals any solar pv inverter price, it’s the perfect investment for your green energy future.
| Warning Protection Content (Warnung Schutz Inhalt) | Trigger Condition (Auslösebedingung) | Indicator Light (Kontrollleuchte) | Warning Recovery (Warnung Wiederherstellung) |
| PVOver-voltage Protection (PV-Überspannungsschutz) | > 60V | Red LED steadyon (Rote LED leuchtet konstant) | Less than 58V (Weniger als 58 V) |
| PVUnder-voltage Protection (PV-Unterspannungsschutz) | < 18V | Red LED steadyon (Rote LED leuchtet konstant) | Greater than 20V (Größer als 20 V) |
| Offline | None, ACunder-voltage will be reported (Keine, AC-Unterspannung wird gemeldet) | Red LED steadyon (Rote LED leuchtet konstant) | None (Keine) |
| High Temperature Derating Alert (Warnung vor Temperaturü berlastung) | None, derating will not be reported (Keine, eine Leistungsreduzierung wird nicht gemeldet.) | Red LED steadyon (Rote LED leuchtet konstant) | None (Keine) |
| Microinverter Over-temperature Protection (Microinverter-Übertempera turschutz) | Above 95°C (Über 95 °C) | Red LED steadyon (Rote LED leuchtet konstant) | 93°C or below |
| Grid Low Frequency Protection (Netz-Niederfrequenzschutz) | 50Hz: < 47.5Hz; 60Hz: < 57.5Hz | Red LED steadyon (Rote LED leuchtet konstant) | For 50Hz, > 47.6 Hz; For 60Hz, > 57.6 Hz |
| Grid High Frequency Protection (Hochfrequenzschutz für das Stromnetz) | 50Hz: > 51.5Hz; 60Hz: > 62.5Hz | Red LED steadyon (Rote LED leuchtet konstant) | For 50Hz, < 47.6 Hz; For 60Hz, < 57.6 Hz |
| Grid Over-voltage Protection (Netzüberspannungsschutz) | > 270V | Red LED steadyon (Rote LED leuchtet konstant) | < 267V |
| Grid Under-voltage Protection (Netzunterspannungsschutz) | < 190V | Red LED steadyon (Rote LED leuchtet konstant) | > 193V |
| Power Outage/Disconnected Grid (Stromausfall/Netz getrennt Netz) | None, ACunder-voltage will be reported | Red LED steadyon (Rote LED leuchtet konstant) | None (Keine) |
| Anti-Islanding Protection (Anti-Islanding-Schutz) | Grid power loss detected (Stromausfall im Netz erkannt) | Red LED steadyon (Rote LED leuchtet konstant) | when power is restored (wenn die Stromversorgung wiederhergestellt ist) |
| Power Line Not Connected (Stromleitung nicht angeschlossen) | None, ACunder-voltage will be reported (Keine, AC-Unterspannung wird gemeldet) | Red LED steadyon (Rote LED leuchtet konstant) |
