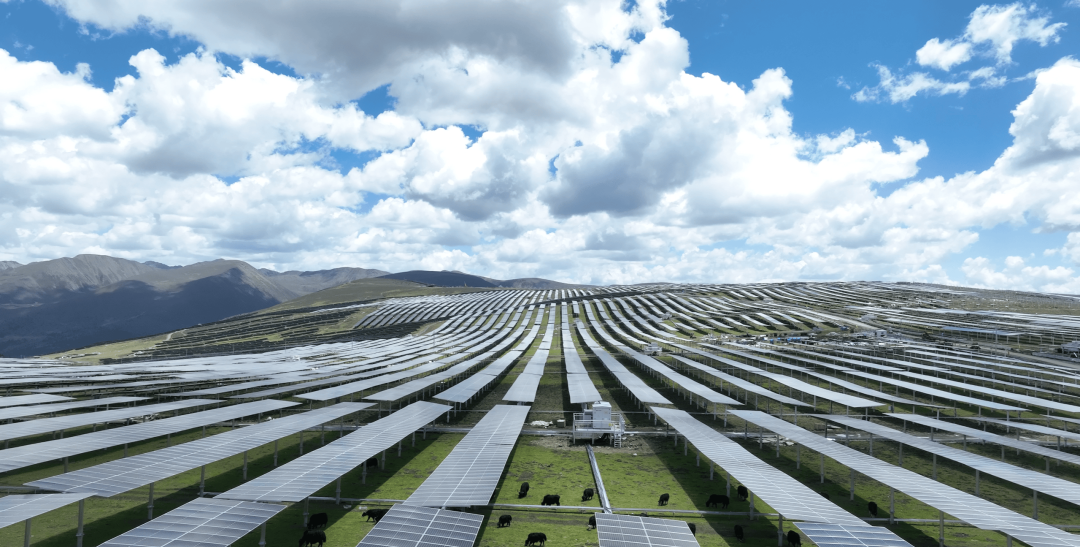

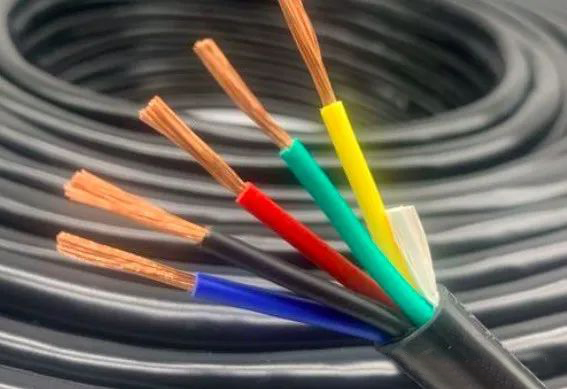

In photovoltaic systems, photovoltaic cables serve as critical conduits connecting various components and transmitting energy and signals, with diverse types fulfilling specialized roles. Each photovoltaic cable is designed for specific applications with stringent performance requirements. Below is a detailed overview of common photovoltaic cable types, their applications and how to choose the good ones.

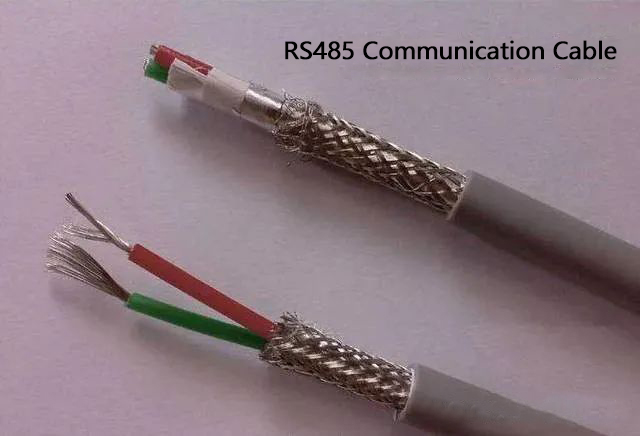

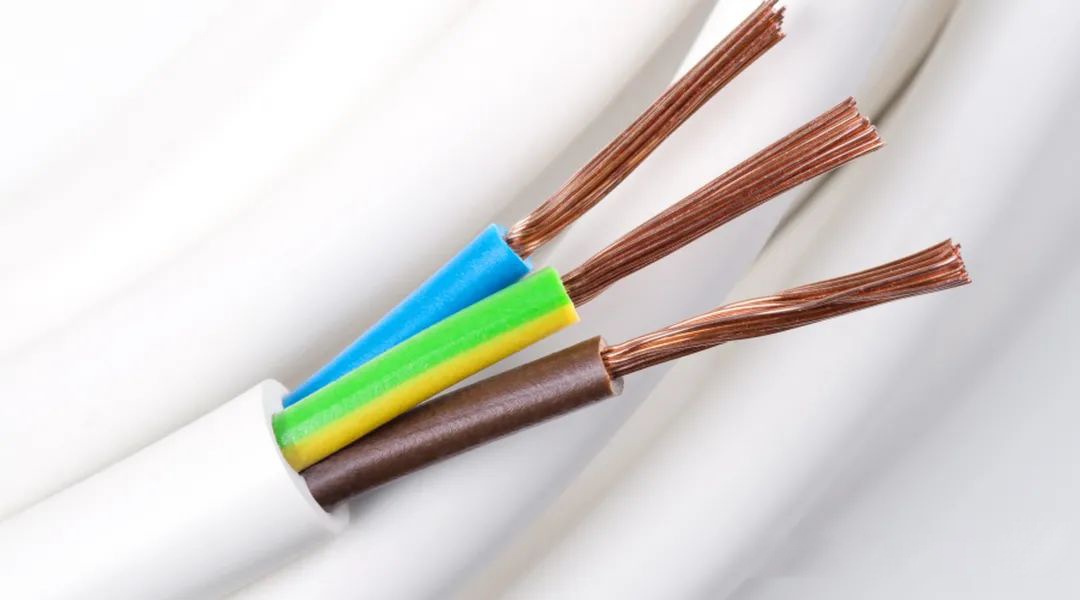

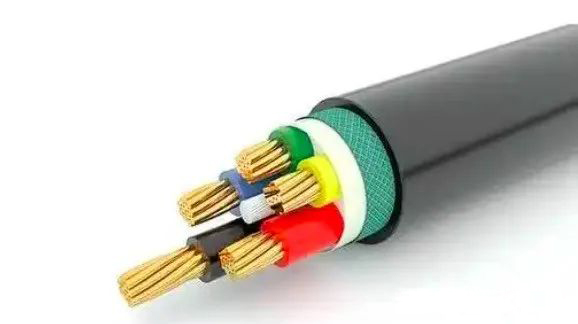

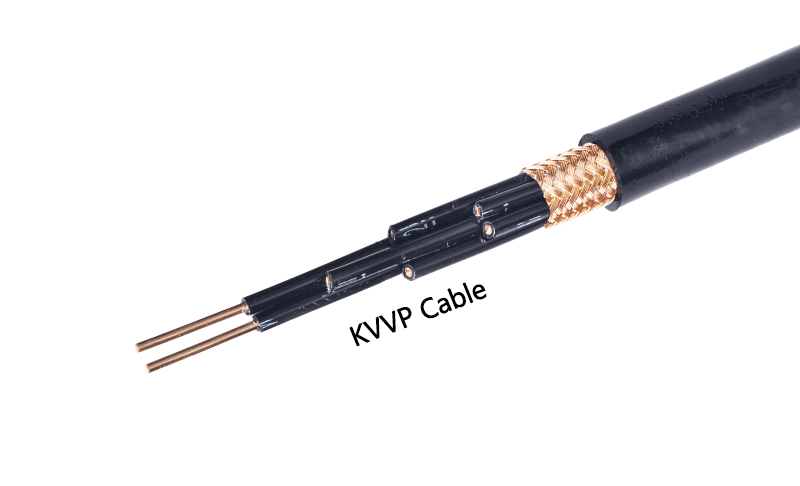

PV systems incorporate diverse cable types, each fulfilling indispensable functions that directly impact overall performance*. Proper cable selection is paramount for ensuring system safety*, reliability*, and operational efficiency*. During installation*, engineers must carefully evaluate system specifications* environmental factors* when selecting appropriate cable types* configurations*. This optimization maximizes PV system output* while establishing a reliable foundation for sustainable energy utilization*.

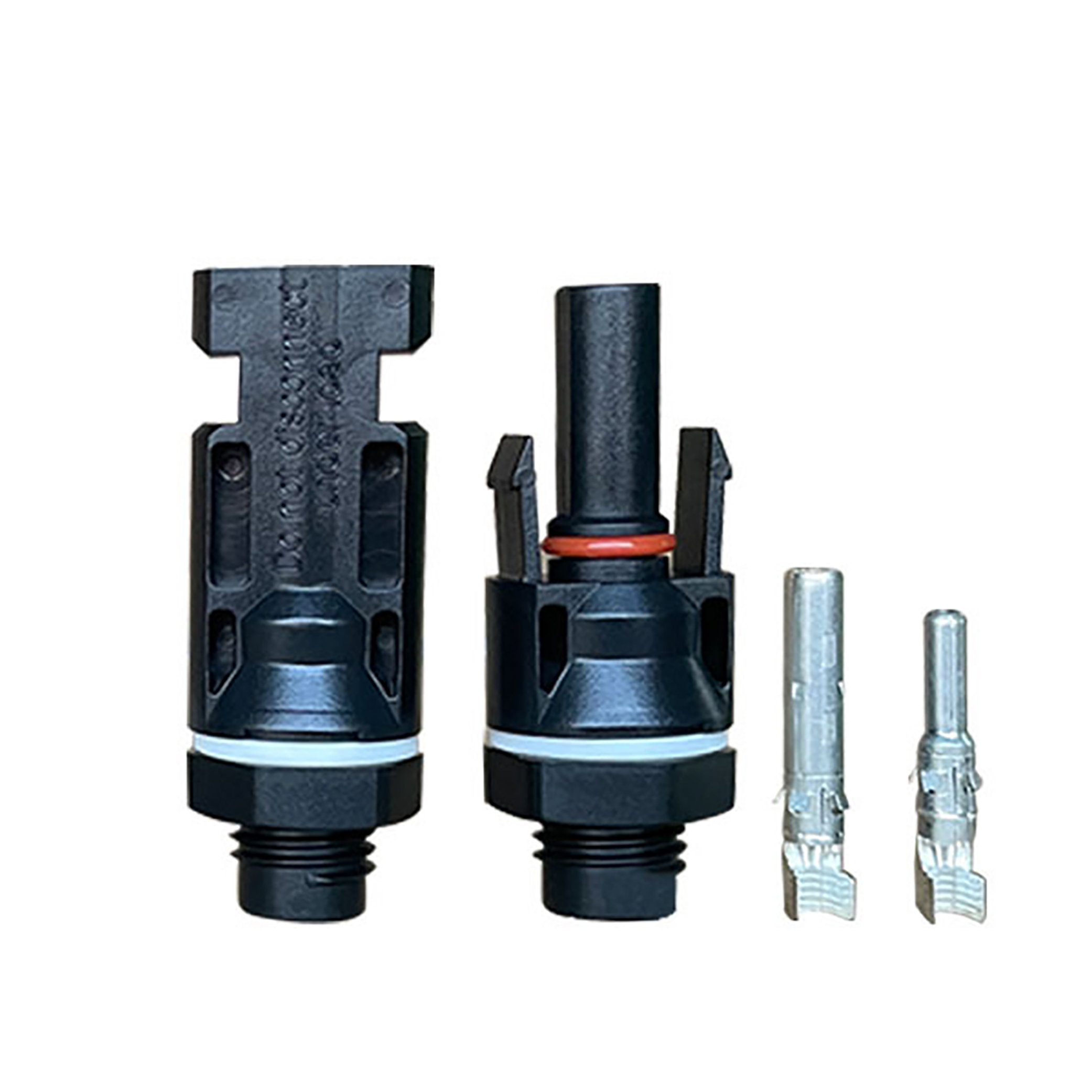

Photovoltaic cables connect photovoltaic modules, inverters, and other components in solar power systems. Choosing the right cables involves multiple technical considerations. Here are some easy-to-understand key points—hit that follow button for instant updates on more great content!

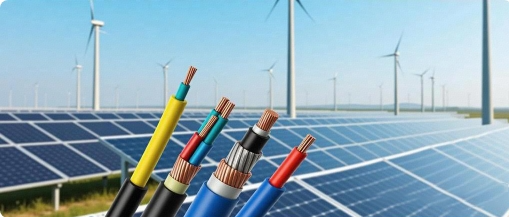

The rated voltage of cables in a photovoltaic power generation system must be rated for specific voltage levels. Generally, the output voltage of PV modules ranges from tens to hundreds of volts. When connected in series and parallel configurations, the input voltage at combiner boxes or inverters increases significantly. Therefore, cable selection should be based on the system's highest operating voltage to ensure safe performance. Industry standards recommend cables with a rated voltage exceeding the system's peak voltage—for example, specifying 1500V-rated cables for a system with a maximum 1000V capacity.
A cable's ampacity refers to its maximum sustainable current under normal operating conditions. In PV systems, this must accommodate the system's peak current demand. Insufficient ampacity can cause overheating and potentially create safety hazards. When calculating peak current, engineers must consider factors such as the PV modules' "short-circuit current" and inverter input current. For instance, a system with 100 PV modules (each rated at 10A short-circuit current) may require cables handling up to 1000A continuous current (including design margin). Consequently, cable specifications must meet these operational parameters.

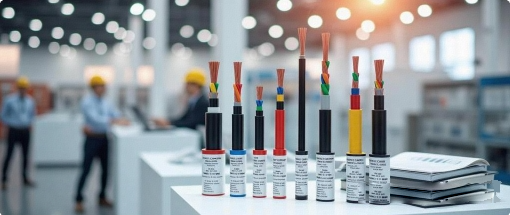

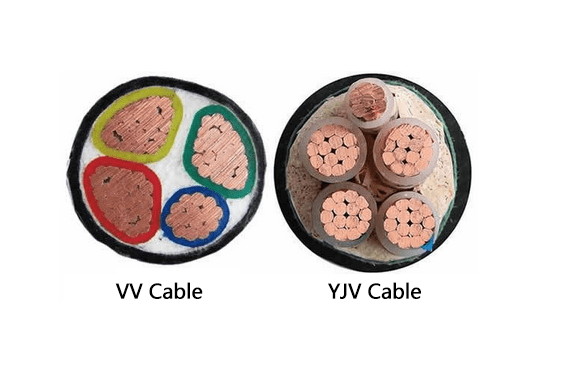

High-quality insulation effectively prevents cable leakage, protecting both personnel and equipment. These cables typically use special insulation materials like cross-linked polyethylene (XLPE), with high insulation resistance and voltage tolerance. When selecting cables, verify their insulation ratings to ensure they meet all relevant standards and requirements.
PV systems live outdoors 24/7, so cables need to tough it out through blazing sun, pouring rain, and temperature extremes (-40°F to 194°F). Prioritize UV-resistant, anti-aging cables rated for your climate to ensure decades of reliable service.

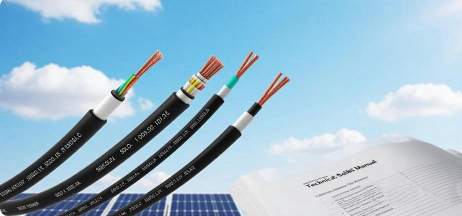

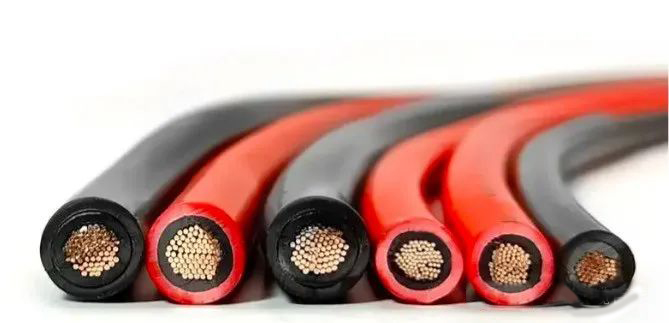

The cables in photovoltaic systems need to bend and be laid out frequently, so flexibility is crucial. Very flexible photovoltaic cables make installation and maintenance easier, and are less likely to get damaged from bending. When choosing cables, options like highly flexible stranded cables—with smaller bending radiuses—work better for photovoltaic system installations.

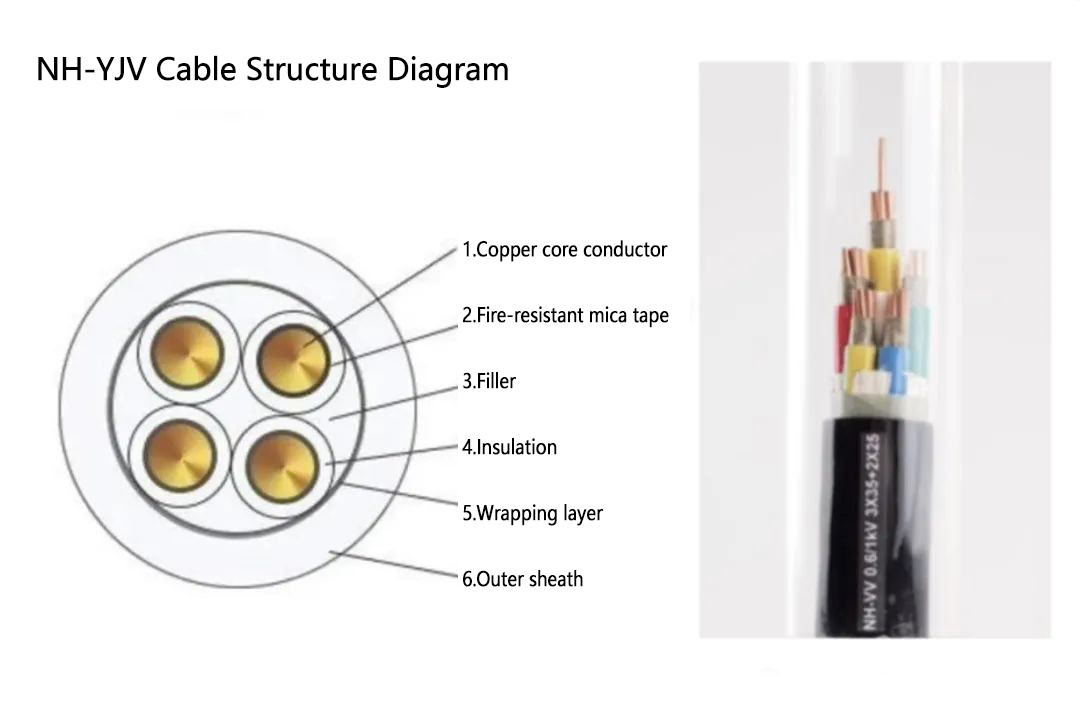

Photovoltaic power generation systems contain electrical equipment and extensive cabling. In the event of fire, the consequences could be severe. Selecting flame-retardant cables effectively prevents fire spread and enhances system safety. When selecting, verify the cable's flame-retardant rating, such as those meeting standards like UL94 V-0.
In addition to safety considerations, cable cost remains a key selection factor. While meeting system performance requirements, choose cost-effective cables. Prices vary by brand and cable specifications. Compare products and prices from multiple suppliers to select suitable cables and reduce system costs.
