On grid solar inverter working principle

Do you kown the on grid solar inverter working principle?

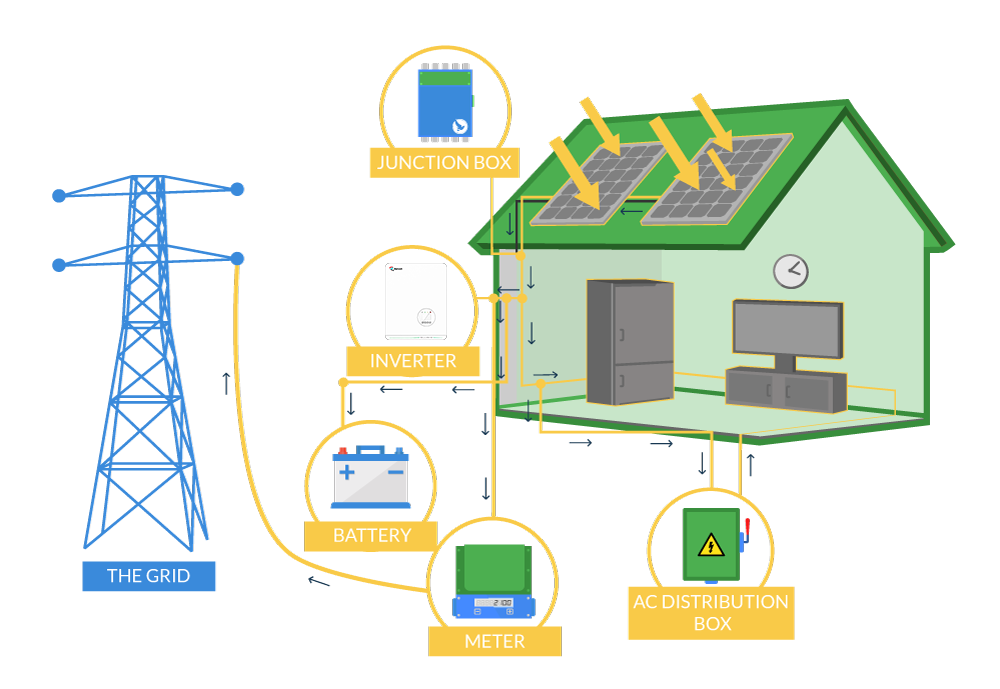

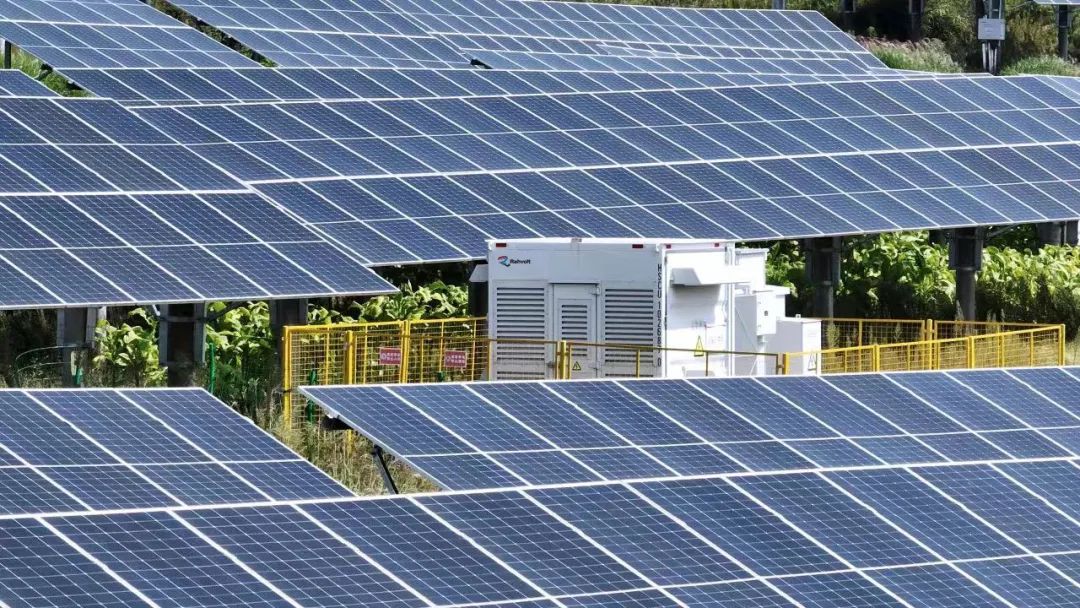

On grid inverters are commonly employed in large-scale photovoltaic power plant systems, in which multiple PV strings in parallel are connected to a centralized inverter's DC input side. Higher-power inverters typically use three-phase insulated-gate bipolar transistor (IGBT) power modules, while lower-power units utilize MOSFETs (metal-oxide-semiconductor field-effect transistors). Additionally, a digital signal processing (DSP) controller is used to improve the power quality of the output, bringing it close to an ideal sine wave output.
In today's article, we will introduce what is a on grid solar inverter, all types of energy storage solar inverters, on grid solar inverter working principle,  on grid solar inverter's key features and core functions and on grid solar inverter's applications.

1. What Is a On Grid Solar Inverter?

A on grid inverter is a power conversion device that transforms direct current (DC) from renewable energy sources like solar panels, wind turbines, and battery storage systems into grid-compatible alternating current (AC), allowing electricity to be fed back into the grid.

2. Types of Energy Storage Solar Inverters

2.1 On Grid Inverter:

Designed to send a home's solar power back to the grid for energy credits. Without battery storage capability, it's ideal for stable grid conditions or applications without storage needs.

2.2 Off-Grid Inverter:

Provides independent power in areas without grid access or with unreliable electricity, delivering stable household supply.

2.3 Hybrid On Grid/Off Grid Inverter:

Combines both functionalities—feeding surplus energy to the grid during normal operation while switching to battery power during outages.

2.4 Energy Storage Inverter:

For homes with existing PV systems, this AC-coupled (a connection method) solution makes it easy to add battery storage and manage energy flow.

2.5 Hybrid Inverter:

Specifically engineered for residential and small commercial/industrial ESS (Energy Storage Systems), these versatile units directly integrate PV arrays, grids, batteries, and loads with full system control.

2.6 Single-Phase Inverter:

Optimized for homes and small businesses using single-phase power systems.

2.7 Three-Phase Inverter:

Built for large residences and commercial/industrial applications requiring three-phase power.

2.8  Split-Phase Inverter:

Addresses specialized voltage requirements in niche applications.

3. On grid solar inverter working principle

When the public power grid fails, the grid side effectively becomes a short circuit. Grid-connected inverters will then activate overload protection and shut down automatically. Upon detecting the overload, the microprocessor blocks the SPWM signal and disconnects the grid-linked circuit breaker. If the solar array continues generating power, the inverter switches to standalone operation. In this mode, control is relatively simple, operating as an AC voltage negative feedback system: the microprocessor monitors output voltage, compares it with a reference voltage (typically 220V), and adjusts PWM duty cycle to maintain stable inversion.

Standalone operation requires sufficient solar array output. If load demand exceeds capacity or sunlight is inadequate, the inverter's power output drops, causing solar array voltage to decline until AC output falls below threshold and triggers low-voltage protection. The system automatically reconnects to grid-tied mode when utility power resumes.

DC-AC Conversion: Converts DC power from solar panels or other sources into AC power for homes, businesses, or sending back to the grid.
Maximum Power Point Tracking (MPPT): Ensures peak energy harvest from solar panels under varying conditions through advanced algorithms.
Grid Synchronization: Precisely matches grid frequency, voltage, and phase for safe, efficient power transfer.
Battery Management: Intelligently controls charging/discharging cycles—storing excess energy for later use or grid feedback.
Safety Features: Comprehensive protections including over/under voltage, overload, and short-circuit safeguards.
Anti-Islanding Protection: Automatically stops feeding power to prevent dangerous 'islanding' during outages, keeping people safe.
Smart Control: Modern units feature real-time monitoring and adaptive optimization for maximum energy efficiency through intelligent systems.

4  On Grid Solar Inverter Key Features

1. High Efficiency
   Due to the current high cost of solar cells, maximizing energy harvest necessitates optimal inverter efficiency.

2. High Reliability
   Photovoltaic systems (PV) often operate in remote locations without maintenance personnel, requiring inverters with rugged circuitry, rigorously screened components, and comprehensive protection features.

3. Broad Input Voltage Range
   Solar cell voltage varies with load and irradiance. Aging batteries exhibit wider voltage fluctuations—for example, an aging 12V battery may operate between 10V-16V—demanding stable inverter performance across this range.




5  On grid solar inverter Core Functions

Beyond DC-AC conversion, inverters optimize solar generation and provide critical protections including:

• Automatic operation/standby
• Maximum Power Point Tracking (MPPT)
• Anti-islanding protection (grid-tied systems)
• Automatic voltage regulation (grid-tied)
• DC detection (grid-tied)
• DC ground fault detection (grid-tied)

Key function details:

5.1 Automatic Operation

At sunrise, increasing irradiance raises solar array output until reaching the inverter's activation threshold. The system continuously monitors input power, maintaining operation during cloudy conditions until output diminishes near sunset, when it enters standby mode.

5.2 MPPT Technology

Solar cell output varies with irradiance and junction temperature while exhibiting current-dependent voltage characteristics that create shifting optimal operating points. MPPT dynamically tracks these maxima—a critical feature ensuring peak energy harvest despite changing environmental conditions.

5.3 Grid Synchronization

Before interconnection, on grid inverters analyze utility parameters (voltage/frequency/phase sequence) at the point of common coupling and synchronize their output accordingly.

5.4 Low Voltage Ride-Through (LVRT)

During grid disturbances causing voltage sags at the interconnection point within defined thresholds, PV systems must maintain continuous operation without disconnecting.

5.5 Anti-Islanding Protection

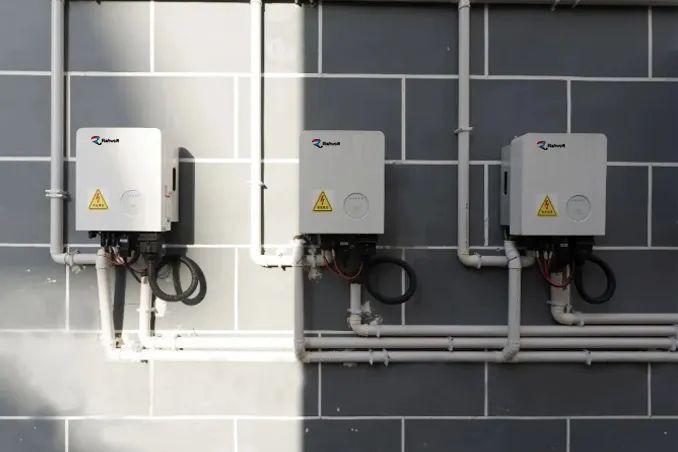

When grid power fails while local generation continues supplying loads—creating hazardous "island" conditions—inverters must detect and terminate this state within regulatory timeframes to ensure personnel safety and grid stability per interconnection standards.

6.  Applications:

On grid energy storage inverters serve key roles in:
• Residential/commercial PV systems
• Wind power installations
• Microgrids
Managing power generation and storage for efficient energy use and smart distribution across these applications.
